Project Details

Architect: Engberg Anderson
G.C.: CD Smith - Fond du Lac
Product: Dri Design Shadow Wall Series, Custom Metal Column Covers
Color: Bone White, Bright Silver
Panel Size: varies
Composition: 0.08 Aluminum Post Painted Kynar
Weight: 2 psf
SideJoints: 1/2
Sealants: None
Date: July 2015

Project: GMIA - General Mitchell International Airport - Milwaukee, WI

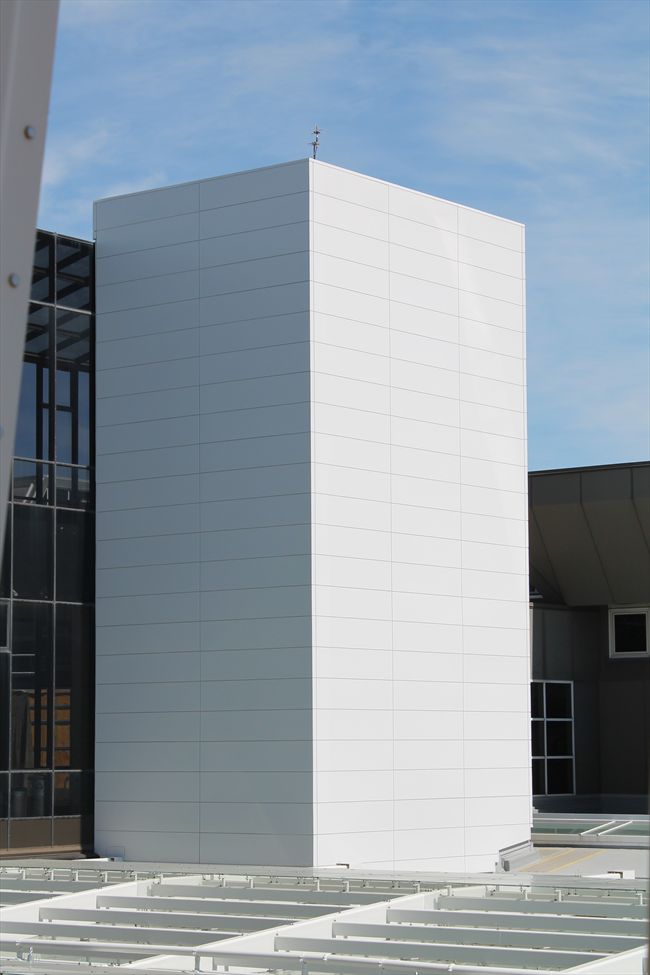

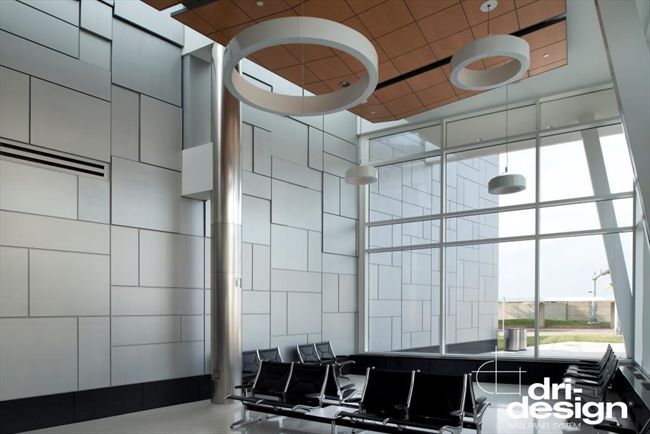

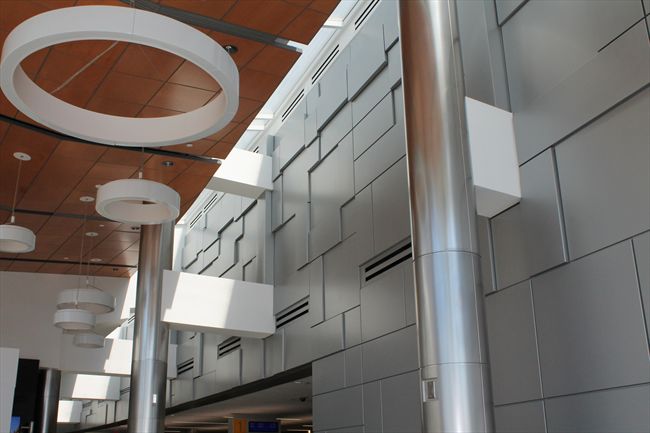

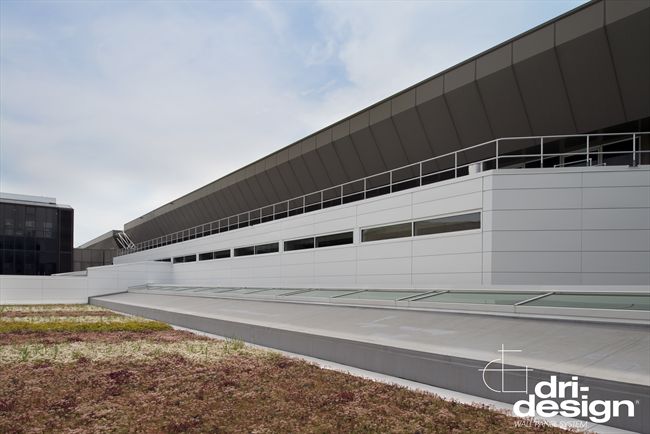

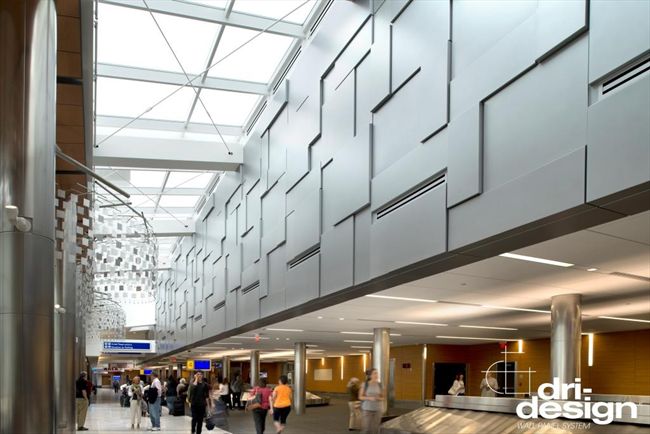

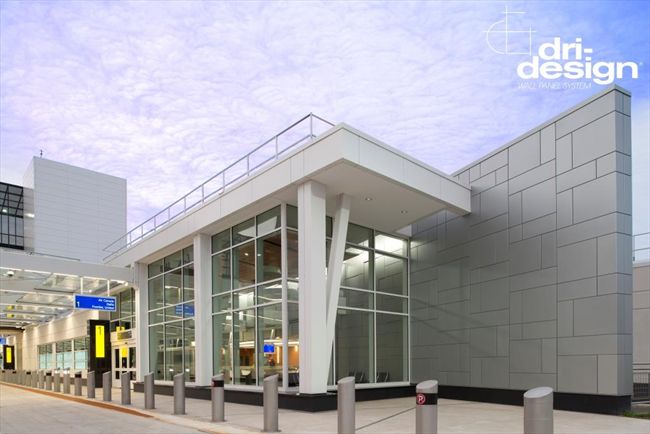

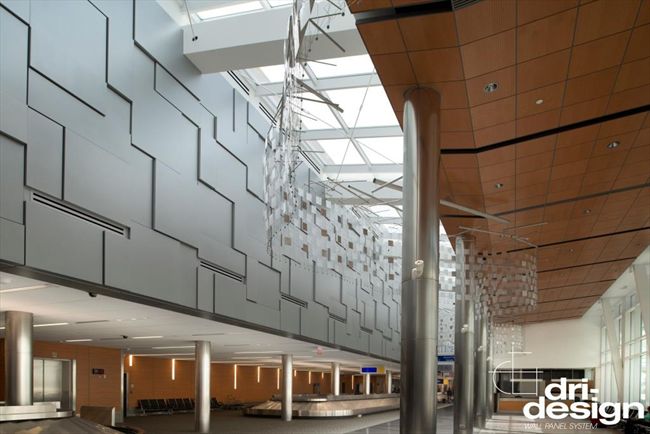

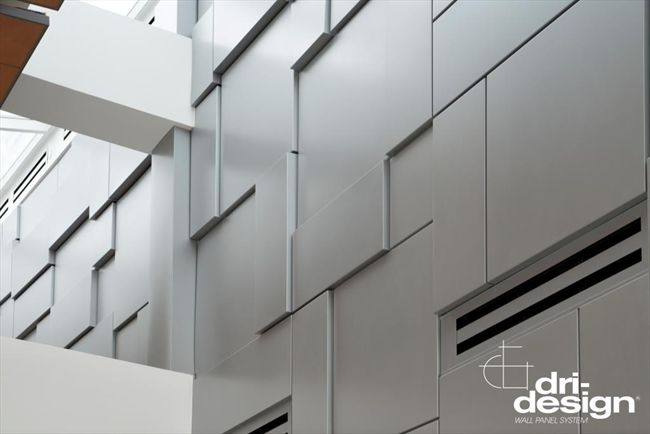

The existing Baggage Claim at GMIA was added onto and renovated. Dri Design silver panels were provided along the entire 600' long wall that formed a curve at both ends. The Dri Design panels were fabricated with the Shadow Wall Series which provided 3 different depths. Horizontal and Vertical dimensions also varied. The wall panel pattern repeated itself every 20' and incorporated a continuous vertical joint every 4'. The continuous vertical allowed the panels to conform to the curvature of the wall. Exterior areas, such as the existing stair tower, penthouses, and canopies were clad with Dri Design Bone White panels. All panels within 6' of grade were reinforced to provide impact resistance. Column covers were fabricated by All Fab Manufacturing in 18' lengths.
